If you spend any amount of time flying cross-country, you quickly discover something unsettling: The airplane rarely goes exactly where you point it. You set a heading, trim the airplane, and yet your ground track drifts off course. This is the effect of wind, and managing it is one of the fundamental navigation skills every pilot must master.
Wind correction angles (WCA) are how we compensate for that drift. They allow us to maintain a desired ground track despite the movement of the air mass we are flying through. Understanding this concept requires a solid grasp of wind, headings, courses, and the various types of airspeed.
The Effect of Wind on Ground Track
A wise (and rather odd) instructor once said: “Wind is the movement of the ground under the air.” From the pilot’s perspective, this isn’t entirely wrong. You are flying within a moving mass of air, and the ground is effectively sliding beneath you. If there were no wind, your heading (the direction the nose is pointed) would match your track (your path over the ground). But introduce wind, and that relationship gets complicated. A crosswind will push the airplane sideways, causing drift. A headwind slows your progress across the ground, while a tailwind speeds it up.
The result is that your ground track is the vector sum of two motions: the airplane moving through the air and the air mass moving over the ground. This is a foundational concept in navigation and is emphasized throughout the Pilot’s Handbook of Aeronautical Knowledge (PHAK Chapter 16, p. 16-2).
What Is Wind?
Wind is the movement of air from areas of high pressure to areas of low pressure. Although it’s an oversimplification (as glider pilots will tell you with passion), we normally think of wind as moving horizontally. This pressure-driven flow is modified by several forces, most notably the Coriolis force.
Coriolis force is an apparent force caused by the rotation of the Earth. One mental model is to visualize two baseball players trying to play catch on a spinning merry-go-round. Every time one throws the ball to the other, the player trying to catch the ball moves out of the way. With wind, air tries to flow directly from high pressure to low pressure, but the low-pressure system keeps moving out of the way because of the Earth’s rotation.
From our point of view on the surface of the Earth, Coriolis force deflects moving air to the right in the Northern Hemisphere and to the left in the Southern Hemisphere. As a result, winds tend to circulate around pressure systems rather than flow directly from high to low pressure.
- In the northern hemisphere, wind will flow clockwise around a high-pressure system, and counterclockwise around a low-pressure system.
- In the southern hemisphere, wind will flow counterclockwise around a high-pressure system, and clockwise around a low-pressure system.

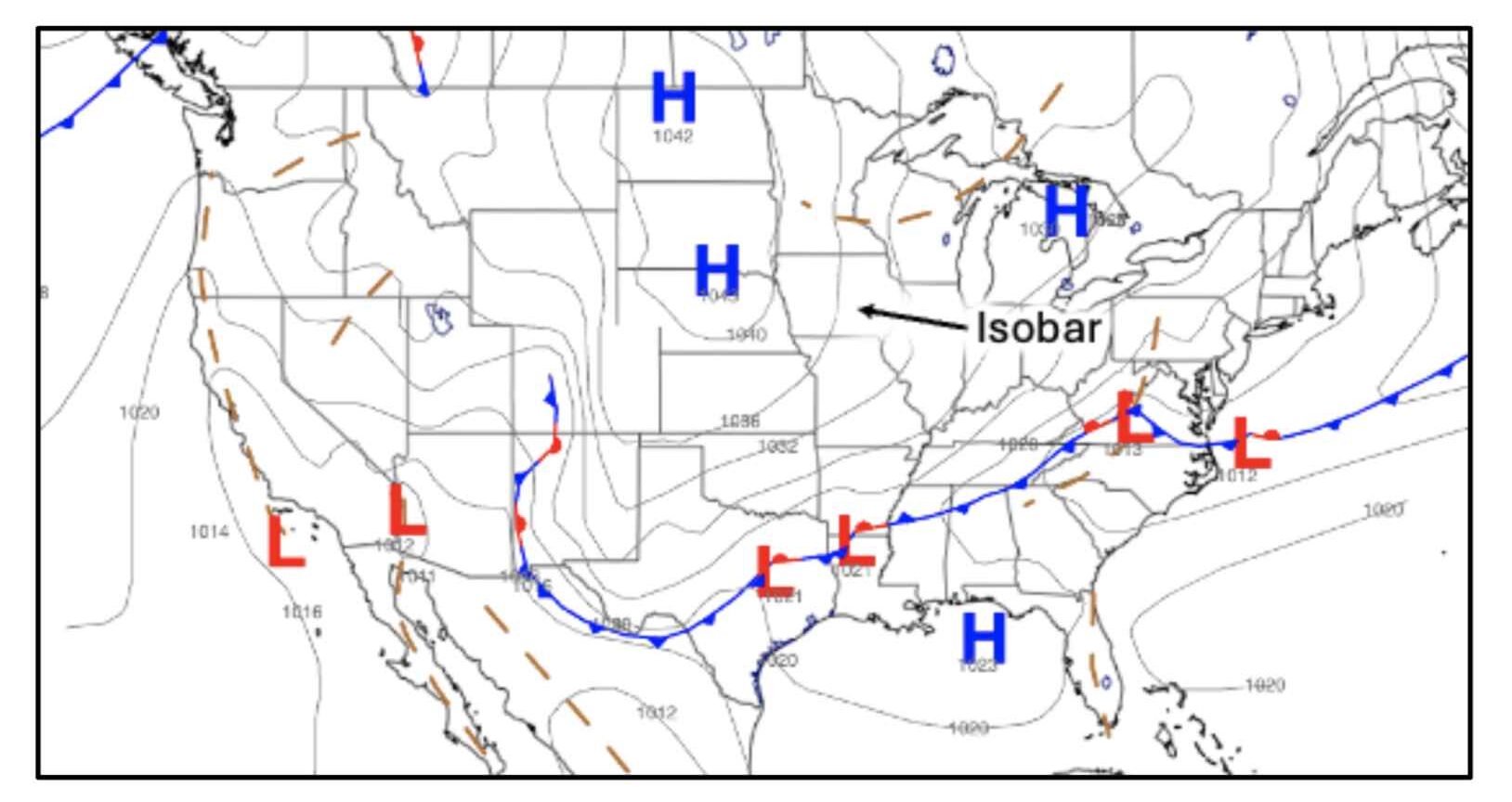

In the figure below, you can see a sample of a Prognostic Chart from the National Weather Service. The isobars link follow a specific air pressure. In practice, high-altitude winds will tend to follow the isobars. Near the Earth’s surface, friction reduces wind speed and weakens the Coriolis effect. This allows the wind to cross isobars at an angle, flowing more directly toward low pressure areas. As altitude increases, friction decreases, and winds become stronger and more aligned with the pressure gradients, often flowing nearly parallel to isobars.
This variation with altitude explains why winds aloft forecasts are critical for flight planning. Wind speed and direction can change dramatically with altitude, affecting both groundspeed and required wind correction angle (PHAK Chapter 12, p. 12-3).
Heading vs. Course and Airspeed vs. Groundspeed
Wind creates two key distinctions that every pilot must understand. First, there’s course or heading versus track. Your heading is the direction the aircraft’s nose is pointed. Your track is the path your airplane follows over the ground. When wind is present, these are not the same. You must point the airplane into the wind slightly to maintain your desired course. This angular difference is called the wind correction angle.
Second, airspeed versus groundspeed. Airspeed is how fast you are moving through the air mass, while groundspeed is how fast you are moving over the Earth’s surface. A headwind reduces ground speed, and a tailwind increases it. Crosswinds primarily affect track rather than speed, but they still influence the vector relationship.
This distinction is critical for time, fuel planning, and navigation accuracy, and is emphasized in cross-country planning requirements under 14 CFR §91.103, which requires pilots to become familiar with “weather reports and forecasts” and other relevant information before flight.
Types of Airspeed
Understanding wind correction angles requires a firm grasp of the different types of airspeed.
Indicated Airspeed (IAS) is what you read directly from the airspeed indicator. It reflects dynamic pressure measured by the pitot-static system. Because the pitot tube is rigidly fixed to the aircraft, the angle at which the air enters the tube varies slightly as angle of attack and/or coordination changes. Additionally, airflow disturbances caused by the aircraft structure can introduce errors.
Indicated airspeed is generally accurate near the middle of the flight envelope, but there can be some instrumentation error when you fly unusually slowly.
Calibrated Airspeed (CAS) is simply IAS corrected for instrument and position errors. In most training aircraft, the difference between IAS and CAS is small and often ignored. It’s important to understand that CAS is not intended to be a measure of velocity but is most closely a measure of the air’s kinetic energy relative to the airplane. That makes it very useful for predicting airplane performance regardless of temperature or air pressure.
To convert from IAS to CAS, you will typically need to use the guidance in your Airplane Flight Manual or Pilot’s Operating Handbook (AFM/POH). Equivalent Airspeed (EAS) is CAS corrected for the compressibility of the air during high-speed operations. For most general aviation flying, high-speed flight is more of a dream than a reality. So, it is not a practical concern and can safely be ignored. So, we just assume that EAS equals CAS for training airplanes.
True Airspeed (TAS) is the actual speed of the aircraft through the air mass. As altitude increases and air density decreases, TAS increases for a given EAS. This is the speed used in navigation calculations. We can normally calculate this by correcting the EAS for air pressure and temperature.
To estimate TAS, we can just increase EAS by about 2% per thousand feet we are above sea level. The equation would look something like this:
TAS ~= EAS x [1 + 0.02 x (Density Altitude/1,000)]
Your flight computer or flight planning application can be far more precise than the estimate
Groundspeed (GS) is the aircraft’s speed over the ground. It is TAS adjusted for wind. This is the speed that determines how long it takes to get from point A to point B. We’ll talk about how to calculate groundspeed when we get to the wind triangle.
The relationships among these speeds are discussed in detail in the PHAK (Chapter 8, p. 8-7).
Now that you have an introduction to airspeed, we’ll tackle applying that knowledge to heading calculations in Part 2.
